ANSI Non-metallic Pumps | PVDF | PFA Pumps

CMPV / NM SERIES

product specification

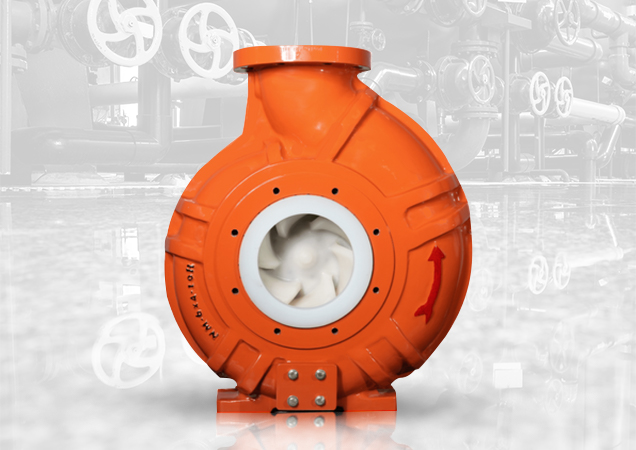

Non Metallic pump features a robust design prioritizing efficiency, using genuine material resulting in enhanced performance. Our process pumps are capable of managing flows up to 1000 m3/hr, even under critical and corrosive conditions.

Featuring Inside mounted metal free seal design perfectly designed to handle slurry and corrosive media at elevated temperature and pressure.

NM series pumps have paved the way for our success and reputation as reliable solution provider in the process industry.

  • End Suction - Top Discharge
  • ANSI / ASME B73.1 Compliance
  • Speed: 900rpm/ 1500rpm/ 2900rpm
  • Flow: from 01 m3/hr. to up to 1000 m3/hr.
  • Head: from 05 mtr. to up to 100 mtr.
  • Temp up to 271c

Invested Casting Wetted Parts Robust Construction / High Efficiency - Low Maintenance

- Material Of Construction -

PVDF (Polyvinylidene Fluoride )

PFA (Perfluoroalkoxy Alkanes)

FEP (Fluorinated Ethylene Propylene)

PP-H (Polypropylene Homopolymer)

  • NM series pump is Thick Walled Polymer moulded with Metal Armor support.
  • Pump Model and wetted parts will be specifically selected based on process requirements and are available in four different Polymers optimally covering all applications.
  • Pumps are fitted with Universal Internal Mounted mechanical seal with robust design, no metal contact ensuring trouble free operation and extended seal life.
